Dryer Vent Equivalent Length: How to Calculate Your Duct Run
Proper dryer exhaust design involves more than simply measuring the distance from the dryer to the exterior termination. Elbows and fittings can affect airflow, which is why dryer exhaust systems are often evaluated using equivalent duct length.
Understanding equivalent length can help contractors, builders and homeowners plan dryer vent routes and document concealed duct systems correctly.
What Is Dryer Vent Equivalent Length?
Equivalent length accounts for both the actual length of straight dryer duct and the effect of fittings used in the exhaust system.
The allowable exhaust length depends on the dryer manufacturer's instructions and applicable code requirements. When the manufacturer's instructions do not specify a length, applicable mechanical or residential code provisions may establish maximum lengths and fitting deductions.
Because requirements can vary by dryer, jurisdiction and adopted code edition, always verify the requirements applicable to your project.
Why Dryer Vent Elbows Matter
Standard dryer vent elbows can add significant resistance to an exhaust system. Using smoother, larger-radius fittings can reduce that restriction.
The InOvate LT90 Dryer-Ell is a 4-inch, 90-degree fitting with a 10-inch radius and 18-inch overall length. InOvate's current technical specifications reference an 18-inch equivalent length for the LT90 under the applicable 10-inch-radius fitting tables.
Its larger radius and smooth interior are designed to provide a less restrictive transition than a conventional tight-radius 90-degree elbow.
How to Calculate a Dryer Vent Run
Start by measuring the actual length of the dryer exhaust duct from the dryer connection to the exterior termination.
Then account for elbows and fittings according to the dryer manufacturer's installation instructions and the code requirements applicable to the project.
For example, a system might include:
- Straight sections of 4-inch dryer exhaust duct
- One or more 90-degree turns
- 45-degree turns
- A wall or roof termination
Add the applicable equivalent lengths or deductions for those fittings to determine whether the proposed system is within the allowable dryer exhaust length.
Documenting Concealed Dryer Exhaust Ducts
Once a dryer exhaust duct is concealed behind drywall or other finishes, determining its total developed length can be difficult.

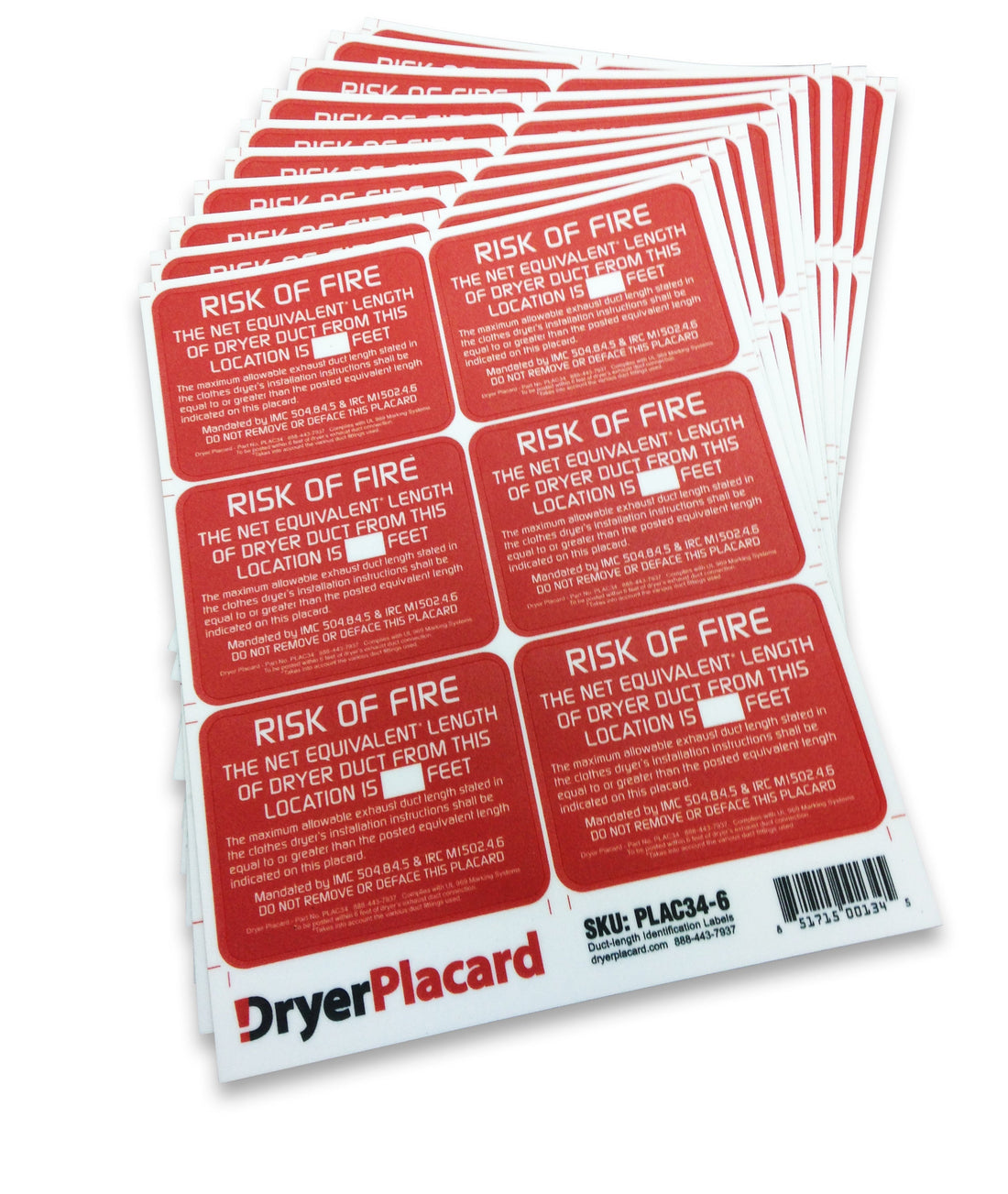

The InOvate DryerPlacard provides a permanent location to record the concealed dryer exhaust duct length for future occupants, installers and service technicians.
This can be especially useful in multifamily construction, apartments, condominiums and other projects where the dryer exhaust routing isn't readily visible after construction.
Better Dryer Vent Design Starts With the Route
Whenever possible, dryer exhaust systems should be designed to minimize unnecessary duct length and restrictive fittings. A shorter, smoother route can reduce resistance and simplify future maintenance.
Products such as the LT90 Dryer-Ell can help when a 90-degree transition is necessary, while the DryerPlacard provides a convenient way to document the completed concealed duct system.
Always follow the dryer manufacturer's installation instructions and the building/mechanical code adopted by the local jurisdiction.
