Metal Dryer Vent Box DBX1017FR White for 2x6 Walls

Metal Dryer Vent Box DBX1017FR White for 2x6 Walls

$46.00 $40.00 Sale

DBX1017FR Metal Dryer Vent Box

We provide generous discounts for bulk orders. If you have a project, please reach out to us to take advantage of our bulk pricing.  Email us at contactus@solidsourcehvac.com.

Description:

24 Gauge Powder Coated Metal Dryer Vent Box. The inexpensive DBX1017FR metal dryer vent box is powder coated white to match the washer box. The box is 10” WIDE BY 17″ TALL and designed to fit into a 2 x 6 framed wall. Designed and tested to meet 1 hour equal F&T fire rating requirement for through penetration fire rated system. * Please see installation instructions on how to meet 1 Hour requirement

The DBX1017FR also has the Length identification label inside it to meet the 2015 IMC building code requirement. IMC 504.8.5.

Part numbers:

DBX1017FR (Dryer vent box)

Dimensions:

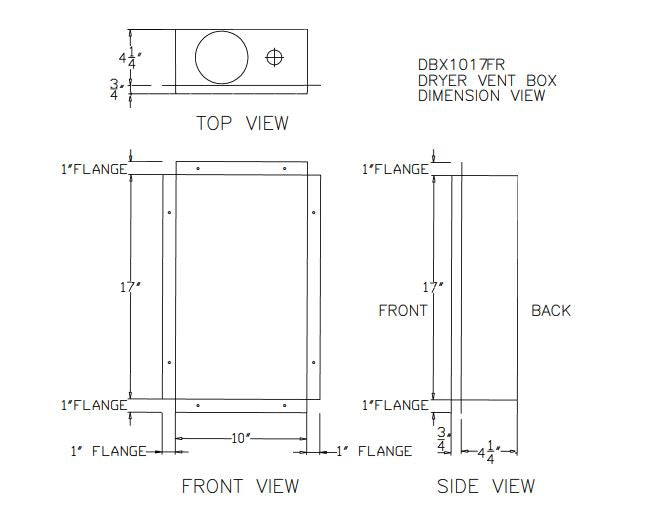

The DBX1017FR is 17’’ tall and 10’’ wide & 4 ¼ deep

Benefits:

The inexpensive DBX1017 FR is powder coated white to match the washer box. Designed and tested to meet 1 hour equal F& T fire rating requirement for through penetration fire rated system. The required length identification label that is attached inside the DBX1017FR saves you money and time, which is the only company who includes it while other companies charge you a few dollars for it separately.

Click here for specs and installation instructions.
