How to Choose the Right Exterior Wall Vent: Dryer, Bath, Kitchen & Fresh Air
Share
Exterior wall vents may look similar, but the correct termination depends on what the duct is actually doing. A clothes dryer exhaust, bathroom fan, kitchen exhaust, and fresh-air intake do not necessarily use the same type of wall cap.
Choosing the wrong termination can create unnecessary airflow restriction, allow pests or weather into the building, make maintenance more difficult, or result in a termination that is poorly suited for the application.
The best exterior wall vent should be selected based on airflow direction, duct size, damper design, screening requirements, exterior durability, and the specific application it serves.
Solid Source HVAC offers purpose-built exterior termination options for dryer exhaust, bathroom and general exhaust, kitchen exhaust, and fresh-air intake applications.
Why the Type of Wall Vent Matters
The exterior termination is the final component in the ventilation system, and its design can directly affect how easily air moves through the duct.
A restrictive opening, damaged damper, clogged screen, or poorly selected vent can reduce airflow and create problems throughout the system. Exterior wall vents also have to withstand rain, sunlight, temperature changes, insects, and physical exposure over many years.
Most importantly, the termination should be matched to the application.
A fresh-air intake, for example, may use screening to help prevent insects and debris from entering the building. A clothes-dryer exhaust termination, however, should not use a screen, because lint can accumulate on the screen and restrict airflow.
Bathroom exhaust applications can have different requirements. This is one reason certain wall vents, including the 4-inch DryerWallVent, can serve more than one application when configured correctly.
Which Exterior Wall Vent Should You Use?
The right wall vent depends primarily on what type of air is moving through the duct.
Dryer Exhaust — DryerWallVent
The DryerWallVent is designed to provide a low-profile, durable exterior termination for clothes-dryer exhaust.
Its large damper opening helps provide a clear exhaust path while the low-profile design creates a clean finished appearance on the exterior of the building. It is available in multiple finishes, including a paintable option, making it suitable for a wide range of residential and multifamily projects.
For dryer applications, the vent should be installed without a screen so lint can pass freely through the termination.
If a wall termination is not practical for the dryer exhaust route, a roof termination may be the better option. Read our Best Dryer Roof Vent Guide to compare roof-vent choices and applications.
Bathroom Exhaust — DryerWallVent or Premium WallVent
One detail that is easy to overlook is that the 4-inch DryerWallVent is not limited to clothes dryers.
The same 4-inch wall vent can also be used as a bathroom exhaust termination, making it an attractive option when a clean, low-profile exterior appearance is desired.
For bathroom exhaust applications, an optional user-installed screen is available upon request. The screen can help provide additional pest and debris protection when appropriate for the application.
The important distinction is:
Bathroom exhaust → optional screen available
Dryer exhaust → do not install the screen
This makes the 4-inch DryerWallVent a versatile option for contractors who want a consistent exterior appearance across both dryer and bathroom exhaust terminations.
Depending on duct size, airflow requirements, and the desired exterior appearance, the Premium WallVent may also be an appropriate choice for bathroom exhaust.
Shop DryerWallVent
Shop Premium WallVent
Kitchen, Bath & General Exhaust — Premium WallVent
The Premium WallVent is designed for exhaust applications where a durable exterior wall termination and good airflow are important.
It is well suited for applications such as bathroom exhaust, kitchen exhaust, and other mechanical exhaust systems when the selected vent size matches the duct and airflow requirements of the system.
Because kitchen and general exhaust systems can vary considerably in duct size and airflow, the wall termination should always be selected based on the requirements of the specific fan or appliance.
Fresh Air, ERV, HRV & Make-Up Air — FreshVent
Exhaust vents move air out of the building. Fresh-air intake vents perform the opposite job.
The FreshVent is designed for outside-air intake applications such as:
ERV systems, HRV systems, dedicated fresh-air systems, and make-up-air applications.
Because air is being drawn into the building rather than exhausted out, intake protection becomes particularly important. A purpose-built fresh-air termination helps protect the opening while allowing outside air to enter the ventilation system.
Using a dedicated intake vent also makes it easier to distinguish fresh-air openings from exhaust terminations during installation and future service.
One Vent, Two Common Applications: The 4-Inch DryerWallVent
Despite its name, the 4-inch DryerWallVent can serve two common ventilation applications:
Clothes-dryer exhaust and bathroom exhaust.
For dryer exhaust, use the DryerWallVent without a screen.
For bathroom exhaust, an optional user-installed screen is available upon request when screening is appropriate for the application.
This versatility can be particularly useful on multifamily and residential projects where contractors want a consistent, low-profile exterior termination across multiple 4-inch exhaust locations.
Wall Vent Screens: When Should You Use One?
Screens are useful in some exterior vent applications, but they are not appropriate for every type of airflow.
For dryer exhaust, a screen should not be installed over the termination. Fine mesh can trap lint and gradually restrict airflow, which is why dryer exhaust terminations are designed to rely on the damper and vent geometry rather than a screen.
For fresh-air and make-up-air intakes, screening is appropriate because the goal is to keep insects and debris from being drawn into the building. FreshVent is specifically designed for ERV, HRV, fresh-air, and make-up-air applications.
For bathroom exhaust, the application is different from dryer exhaust. The 4-inch DryerWallVent can be used for bathroom exhaust, and an optional user-installed screen is available upon request when screening is appropriate for that application.
A simple way to remember it is:
Dryer exhaust → no screen
Bathroom exhaust → optional screen, when appropriate
Fresh-air intake → screen appropriate
Match the Wall Vent to the Duct Size
The wall vent should match the duct size and airflow requirements of the system it serves.
Using a termination that is too small can create unnecessary restriction, while an oversized or poorly matched vent may create installation and weather-sealing problems.
Before selecting a wall vent, confirm:
- duct diameter
- fan or appliance airflow requirements
- exhaust versus intake application
- manufacturer installation requirements
- exterior clearance requirements
- local code requirements
For a standard 4-inch dryer or bathroom exhaust application, the 4-inch DryerWallVent can provide a clean, low-profile termination.
For larger bathroom, kitchen, or general exhaust systems, a Premium WallVent may be better suited depending on the duct size and airflow requirements.
Fresh-air systems should use an intake-specific termination such as FreshVent rather than simply reusing an exhaust wall cap. InOvate identifies FreshVent specifically for ERV, HRV, make-up-air, and other fresh-air intake applications.
Why Airflow and Damper Design Matter
Every bend, fitting, and termination in a ventilation system adds some amount of airflow resistance.
The exterior wall vent should therefore provide a clear airflow path while still helping prevent weather and pests from entering the building.
For exhaust applications, a properly functioning damper should open freely when the fan or appliance is operating and close when the system is off. A damper that sticks, becomes damaged, or is obstructed by debris can reduce airflow and allow unwanted outside air into the building.
DryerWallVent uses a low-profile recessed damper design intended to provide efficient exhaust airflow while helping deter pests. InOvate also emphasizes durable metal construction and weather resistance across its wall-vent product family.
Metal vs. Plastic Exterior Wall Vents
Exterior wall vents are exposed continuously to sunlight, rain, temperature swings, wind, and physical impact.
Plastic wall caps can become brittle, warped, or discolored over time, especially in harsh exterior conditions. Premium metal vents generally offer better long-term durability and can maintain their shape and damper operation over a longer service life.
InOvate's wall-vent products use deep-drawn Galvalume steel construction, with powder-coated finishes available on several models.
For contractors, builders, and multifamily projects, the additional durability can also help reduce callbacks caused by cracked vent hoods, broken louvers, or damaged dampers.

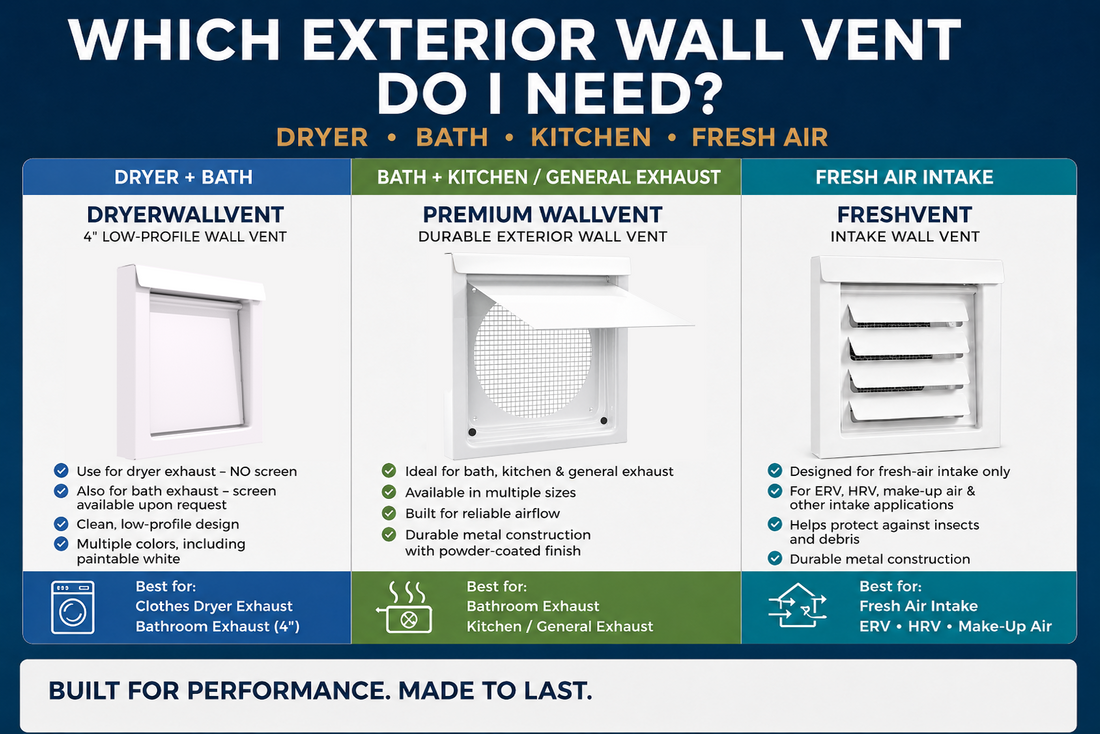

DryerWallVent vs. Premium WallVent: Which One Should You Choose?
The DryerWallVent and Premium WallVent are both durable exterior termination options, but they are intended for somewhat different applications.
Choose the DryerWallVent when you need a clean, low-profile termination for a 4-inch dryer exhaust or bathroom exhaust application. Its compact appearance makes it especially attractive on residential and multifamily projects where the exterior finish matters.
For bathroom exhaust, the DryerWallVent can also be ordered with an optional user-installed screen upon request. The screen should not be installed when the vent is being used for clothes-dryer exhaust.
Choose the Premium WallVent when the application involves bathroom, kitchen, or other general exhaust and the project calls for a more traditional exterior wall termination or a duct size/application better suited to that product family.
A simple way to think about the choice is:
4" dryer exhaust → DryerWallVent
4" bathroom exhaust → DryerWallVent or Premium WallVent
Kitchen/general exhaust → Premium WallVent
Fresh-air intake → FreshVent
The final selection should always account for duct size, airflow requirements, equipment manufacturer instructions, and applicable local code requirements.
What About Fresh-Air Intake Vents?
Fresh-air intake applications should be treated differently from exhaust applications.
ERVs, HRVs, dedicated outdoor-air systems, and make-up-air systems bring outside air into the building. Because of that, the exterior termination needs to help protect the intake from insects, debris, and weather while still allowing adequate airflow.
The FreshVent is designed specifically for fresh-air intake applications rather than dryer or general exhaust. Using an intake-specific termination helps make the system easier to identify and service while providing the protection appropriate for incoming outdoor air.
When laying out a building, fresh-air intakes should also be located with appropriate separation from exhaust outlets and other potential contaminant sources in accordance with the applicable mechanical code and system design requirements.
How to Choose the Right Exterior Wall Vent
When choosing an exterior wall vent, start with the application, then work through duct size, airflow, screening, damper design, and exterior durability.
A simple selection process is:
1. Identify whether the duct is exhaust or intake.
Dryer, bathroom, and kitchen systems exhaust air from the building. ERV, HRV, make-up-air, and other fresh-air systems bring air into the building and require an intake-specific termination.
2. Confirm the duct size.
The exterior termination should be properly matched to the duct and airflow requirements of the system.
3. Determine whether screening is appropriate.
Dryer exhaust should not use a screen because lint can accumulate and restrict airflow. Bathroom exhaust applications using the 4-inch DryerWallVent may use the optional user-installed screen when appropriate. Fresh-air intake applications generally require protection from insects and debris.
4. Consider airflow and damper operation.
The vent should allow air to move freely while providing the weather and backdraft protection appropriate for the application.
5. Consider the exterior appearance and durability.
A wall vent is a permanent exterior building component. Material, finish, profile, and resistance to weather exposure can all affect long-term performance and appearance.
For many projects, the decision can be simplified to:
Dryer exhaust → DryerWallVent
Bathroom exhaust → DryerWallVent or Premium WallVent
Kitchen/general exhaust → Premium WallVent
Fresh-air intake → FreshVent
Shop Exterior Wall Vent Solutions
Solid Source HVAC offers exterior wall termination options for dryer exhaust, bathroom and general exhaust, kitchen exhaust, and fresh-air intake applications.
DryerWallVent
A low-profile 4-inch wall termination that can be used for both dryer exhaust and bathroom exhaust. An optional user-installed screen is available upon request for appropriate bathroom applications.
Premium WallVent
A durable exterior termination for bathroom, kitchen, and other general exhaust applications.
FreshVent
A purpose-built exterior intake for ERV, HRV, make-up-air, and other fresh-air systems.
Browse our complete Wall & Exhaust Vent selection to compare available sizes, finishes, and applications.
Choosing the Right Wall Vent Starts With the Application
Exterior wall vents are not one-size-fits-all. The correct termination depends on whether the system is exhausting dryer air, bathroom or kitchen air, or bringing fresh outside air into the building.
The 4-inch DryerWallVent is especially versatile because it can serve both dryer and bathroom exhaust applications when configured appropriately. For larger or more general exhaust applications, the Premium WallVent may be a better fit, while FreshVent is designed specifically for outside-air intake.
Matching the vent to the application helps support better airflow, easier maintenance, durable exterior performance, and a cleaner finished installation.
