In-O-Vate DB-4D Dryer Box (For Downward Dryer Venting on 2x6 Walls)

Solid Source HVAC


Sale price $45.95 Regular price $60.00
In-O-Vate DB-4D Dryer Box (For Downward Dryer Venting on 2x6 Walls)
In-O-Vate DB-4D Dryer Box (For Downward Dryer Venting on 2x6 Walls)
In-O-Vate DB-4D Dryer Box (For Downward Dryer Venting on 2x6 Walls)
In-O-Vate DB-4D Dryer Box (For Downward Dryer Venting on 2x6 Walls)

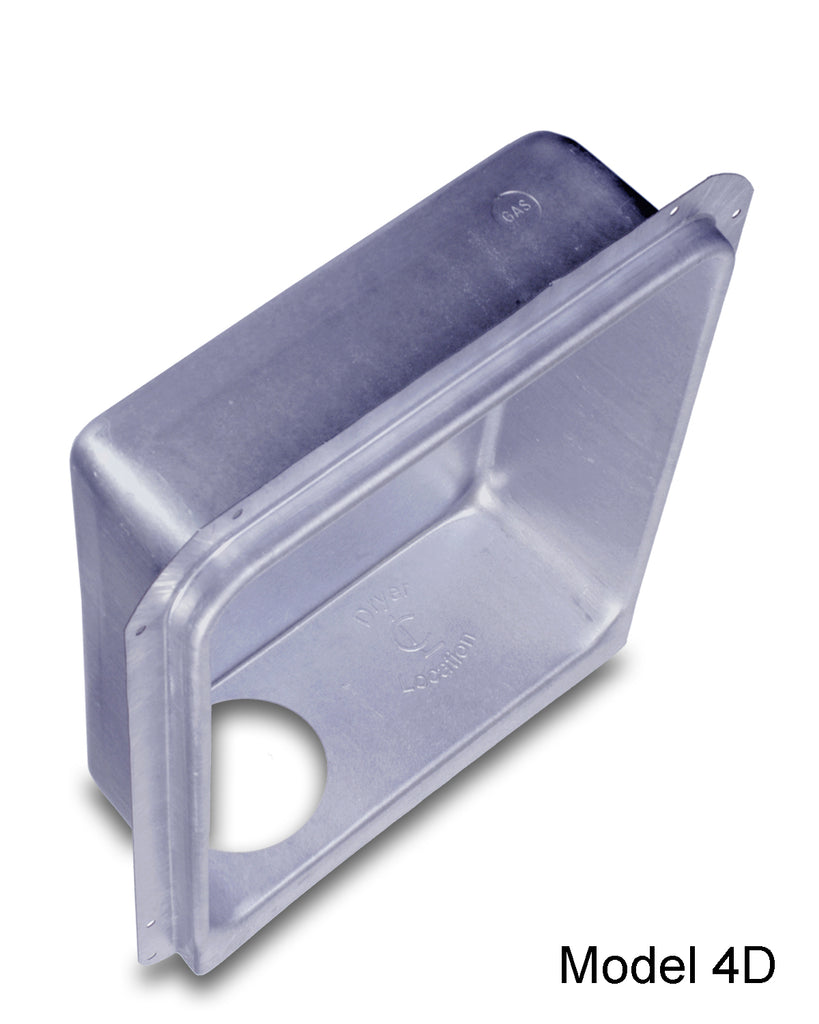

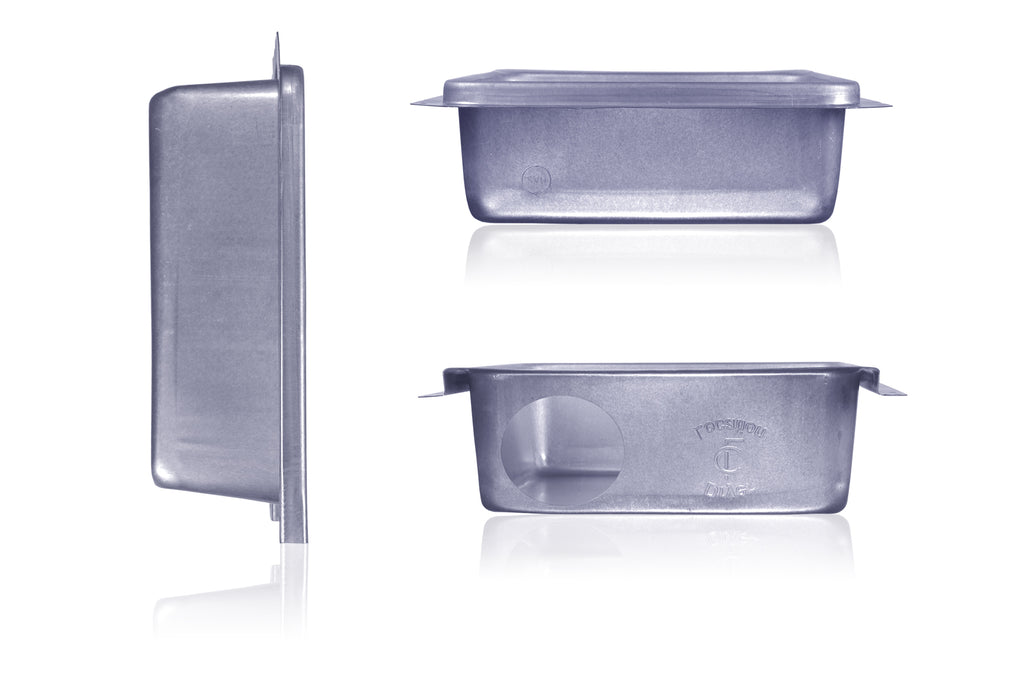

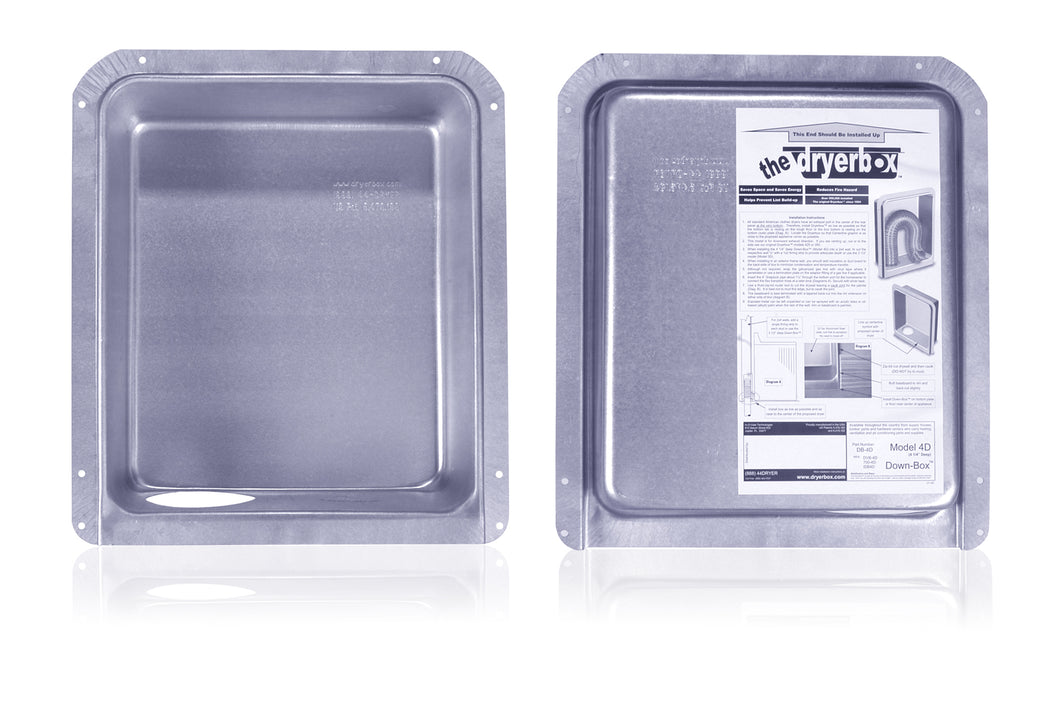

Model 4D is designed for downward venting exhaust systems and floor standing dryers.

(For Downward Exhaust Direction)

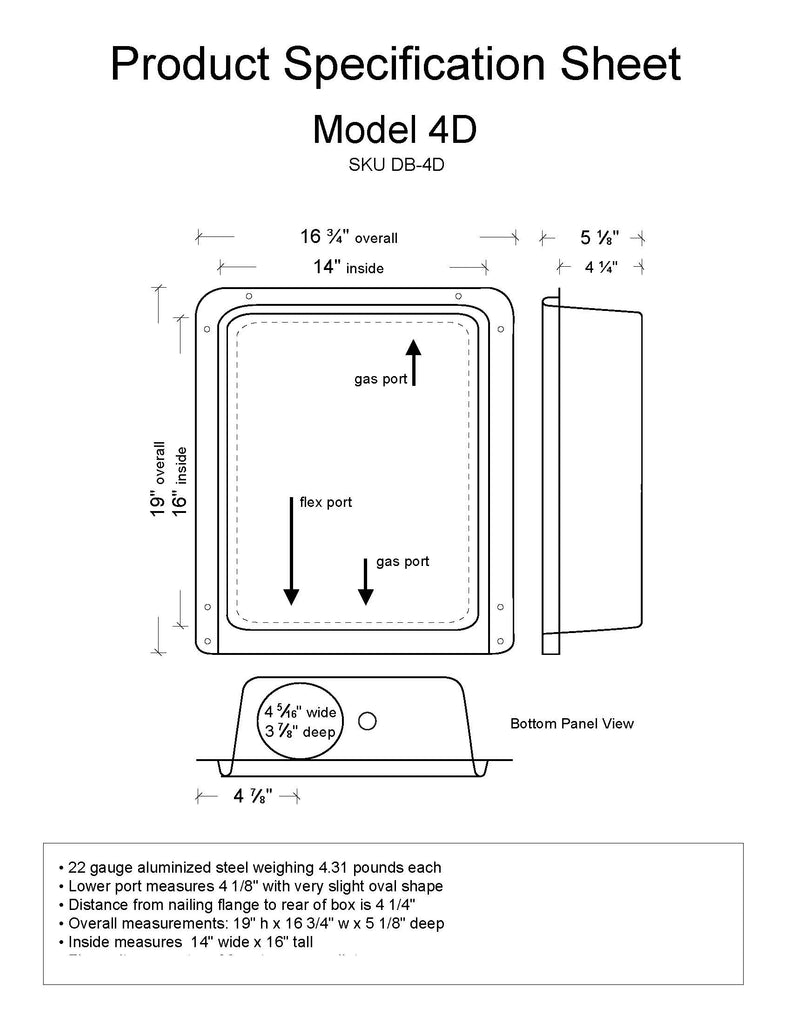

  • 22 gauge aluminized steel weighing 4.31 pounds each
  • Lower port measures 4 1/8" with very slight oval shape
  • Distance from nailing flange to rear of box is 4 1/4"
  • Overall measurements: 19" h x 16 3/4" w x 5 1/8" deep
  • Inside measures  14" wide x 16" tall
  • Five units per carton, 36 cartons per pallet, ships as a class 70
