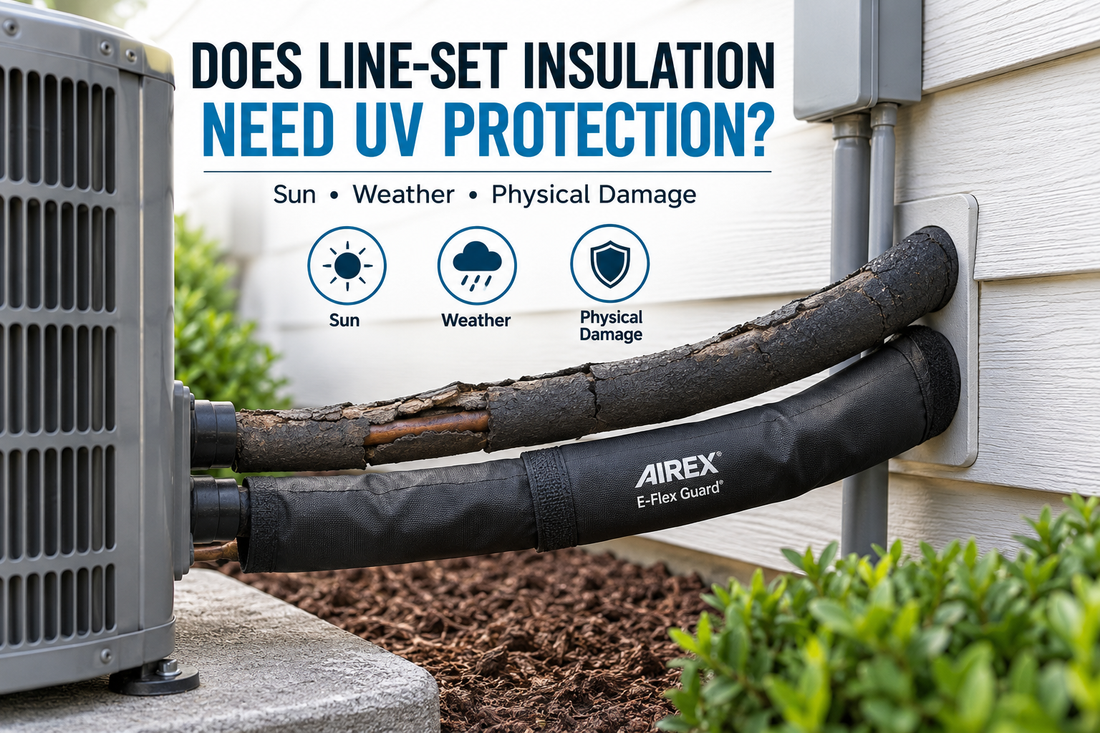

Does HVAC Line-Set Insulation Need UV Protection?
Share
Yes. Outdoor HVAC line-set insulation should be protected from prolonged exposure to sunlight, weather, and physical damage.
The suction line in an air-conditioning or heat-pump system is typically insulated to reduce heat gain and help prevent condensation. When that insulation runs outdoors between the building and condenser, it is exposed continuously to ultraviolet radiation, rain, temperature changes, landscaping equipment, insects, and other environmental conditions.
Over time, unprotected insulation can become:
- Brittle
- Cracked
- Discolored
- Split or deteriorated
- Loose around the refrigerant tubing
- More vulnerable to moisture and physical damage
Once the insulation begins deteriorating, portions of the refrigerant line can become exposed and the original insulation may need to be repaired or replaced.
A durable exterior covering can help protect the insulation before that deterioration occurs.
What Does UV Light Do to HVAC Pipe Insulation?
UV radiation from sunlight can gradually degrade many types of elastomeric and foam insulation used on refrigerant piping.
The damage usually does not happen overnight. Instead, repeated outdoor exposure can slowly break down the surface of the insulation.
Early signs may include fading or surface discoloration. As deterioration progresses, the insulation can develop cracks, splits, or a dry, brittle texture.
This is particularly noticeable on the section of the line set between the exterior wall penetration and the outdoor condenser or heat pump because that portion may receive direct sunlight every day.
Once the insulation begins cracking, simply wrapping a small damaged section may not address deterioration occurring along the rest of the exposed run.
Why Does Refrigerant-Line Insulation Matter?
The larger suction refrigerant line is insulated for an important reason.
During cooling operation, the refrigerant traveling through that line can be considerably colder than the surrounding outdoor air.
The insulation helps:
- Reduce unwanted heat gain
- Limit condensation
- Protect the refrigerant tubing
- Maintain the intended system performance
- Create a cleaner finished installation
Damaged or missing insulation can expose the cold refrigerant line directly to outdoor conditions.
Maintaining the insulation—and protecting it from unnecessary deterioration—is therefore part of maintaining the overall refrigerant piping system.
Should You Paint HVAC Line-Set Insulation?
Painting exposed insulation is sometimes used as a UV-protection method, but it is not always the most durable or service-friendly solution.
A compatible protective coating may help shield insulation from sunlight, but the coating has to remain intact over time. Cracking, peeling, weather exposure, and maintenance work can reduce its effectiveness.
Before painting insulation, verify that the coating is compatible with the insulation manufacturer’s requirements. Some insulation systems have specific approved protective coatings or jacketing methods.
For exposed outdoor refrigerant piping, a dedicated protective covering can provide a more consistent barrier against sunlight, moisture, weather, and physical damage.
Can You Use Tape to Protect HVAC Line-Set Insulation?
Tape is often used for small repairs or temporary protection, but it should not automatically be treated as a permanent outdoor insulation-protection system.
Sunlight, heat, moisture, and temperature cycling can cause tape to loosen, crack, discolor, or separate over time.
More importantly, current energy-code provisions for exposed piping insulation can require protection from sunlight, moisture, wind, equipment maintenance, and other physical damage. AIREX specifically notes that the IECC provisions referenced for piping-insulation protection do not permit adhesive tape as the protective covering.
That makes tape a poor choice when the goal is a durable, code-conscious exterior installation.
What Is AIREX E-Flex Guard?
AIREX E-Flex Guard is a removable protective jacket designed for outdoor HVAC piping and insulation.
It wraps around the exposed line set and uses a bonded hook-and-loop closure system, allowing the covering to be installed without permanently enclosing the refrigerant piping.
According to AIREX, E-Flex Guard is designed to protect exposed HVAC piping and insulation from:
- UV and solar radiation
- Rain and moisture
- Ice and weather exposure
- Physical damage
- Fungal growth
- General outdoor deterioration
The material also functions as a Class II vapor retarder and is designed so the exterior resists water while allowing trapped moisture to escape.
Another advantage is serviceability. The covering can be opened and reused when a technician needs access to the refrigerant piping rather than having to cut away a permanent jacket.
For a broader comparison of line-set protection methods, sizing, and installation options, read our HVAC Line-Set Insulation Protection Guide.
E-Flex Guard vs. Tape or Paint
The main difference is that E-Flex Guard is a purpose-built protective jacket, while tape or paint is applied directly to the insulation surface.
A simple comparison is:
Tape → inexpensive and useful for limited repairs, but may deteriorate outdoors and is not intended as the primary code-compliant weather jacket.
Paint or coating → can provide UV protection when compatible with the insulation, but may need future recoating and can crack or peel.
E-Flex Guard → removable, reusable exterior protection specifically designed for HVAC line-set insulation and outdoor exposure.
AIREX tests E-Flex Guard for UV exposure, water absorption, vapor permeability, flame and smoke characteristics, fungal resistance, and material durability.
Does E-Flex Guard Work With Mini-Splits and Heat Pumps?
Yes. E-Flex Guard is not limited to conventional split-system air conditioners.
Depending on the selected size, it can be used to protect piping associated with:
- Central air-conditioning systems
- Heat pumps
- Mini-split systems
- Ductless systems
- VRF and VRV systems
- Refrigeration piping
AIREX offers multiple widths to accommodate different refrigerant-line and insulation combinations.
What Size E-Flex Guard Do I Need?
AIREX E-Flex Guard is available in multiple sizes so the protective jacket can fit different combinations of refrigerant tubing and insulation thickness.
For the common 6-foot models:
- 72E → approximately 8" wide, designed around a finished diameter of about 1.70"
- 72C → approximately 9.5" wide, designed around a finished diameter of about 2.38"
- 72X → approximately 11.5" wide, designed around a finished diameter of about 3.19"
AIREX also offers larger 75-foot rolls, including a 750V model for larger VRF-style piping applications.
The best way to choose a size is to look at both the copper tubing size and the insulation thickness.
For example:
- Commonly fits 5/8", 3/4", and 7/8" suction lines with approximately 1/2" insulation
- Commonly fits 5/8", 3/4", and 7/8" suction lines with approximately 3/4" insulation
- Commonly fits larger insulated line sets, including 5/8", 3/4", 7/8", and 1-1/8" tubing depending on insulation thickness
Always compare the actual installed line set against the manufacturer’s sizing chart before ordering.
6-Foot Lengths vs. 75-Foot Rolls
AIREX offers E-Flex Guard in both 6-foot lengths and 75-foot continuous rolls.
The 6-foot sections are convenient for:
- Single condenser installations
- Residential service work
- Replacement of damaged exterior insulation protection
- Smaller retrofit jobs
- Projects where only a short section of line set is exposed
The 75-foot rolls are better suited to:
- Multifamily construction
- Apartment projects
- Large residential developments
- VRF/VRV installations
- Contractor crews installing multiple systems
- Projects where many exposed line sets need the same protection
The 75-foot rolls allow installers to cut the material to the required length on site and can reduce the number of individual sections needed on larger jobs. AIREX offers 750E, 750C, and 750X in both black and white.
Solid Source HVAC stocks the common 6-foot options, while 75-foot continuous rolls are available by special/project order for larger contractor quantities.
For 75-foot rolls, contact Solid Source HVAC for current availability, lead time, and project pricing.
Does E-Flex Guard Come in Black and White?
Yes. The common E-Flex Guard models are available in both black and white.
The color choice is primarily based on appearance and the surrounding installation.
Black may blend well with darker equipment, roofing, or exterior finishes, while white can provide a cleaner appearance against light-colored walls or equipment.
Both colors use the same purpose-built outdoor protective material.
What About 90-Degree Line-Set Turns?
AIREX also offers matching 90-degree E-Flex Guard accessories for locations where the protected piping changes direction.
These accessories are available in E, C, and X sizes and can help create a cleaner finished installation around elbows rather than forcing the straight protective jacket around a tight turn.
Is E-Flex Guard Required by Code?
Stop there.
Next we’ll handle this carefully: what energy codes say about protecting exposed piping insulation, why we should avoid claiming that “E-Flex Guard itself is required,” and how to explain the difference between a code requirement for protection and one product that can satisfy that requirement.
Is E-Flex Guard Required by Code?
Not specifically.
Building and energy codes generally do not require the AIREX E-Flex Guard brand by name. Instead, they require exposed piping insulation to be properly protected from outdoor conditions.
For example, the 2021 IECC requires piping insulation exposed to weather to be protected from damage caused by sunlight, moisture, equipment maintenance, and wind, and it must shield the insulation from solar radiation that can degrade the material. The same section also states that adhesive tape is not permitted as the protective covering.
So the requirement is:
Protect the exposed insulation properly.
E-Flex Guard is one product designed to provide that protection. AIREX markets it specifically for compliance with applicable piping-insulation protection provisions and has tested the material for UV exposure, water absorption, vapor permeability, flame and smoke characteristics, fungal resistance, and durability.
The exact code edition adopted in a particular state or jurisdiction can vary, so contractors should always verify the requirements that apply to the specific project.
Why Is Tape Not Allowed as the Primary Weather Protection?
The concern is durability.
Outdoor piping insulation is exposed continuously to sunlight, rain, wind, temperature changes, maintenance activity, and physical contact.
Adhesive tape can loosen, crack, separate, or deteriorate over time, which can leave the insulation exposed again.
That is why the IECC provisions for exposed piping insulation specifically prohibit adhesive tape from being used as the required protective covering.
Tape may still have legitimate uses during installation or repair, but it should not be relied upon as the primary long-term weather jacket where the applicable code requires more durable protection.
When Should Line-Set Protection Be Installed?
The best time to install exterior protection is when the HVAC system is installed, before the insulation has years of UV and weather exposure.
Common opportunities include:
- New condenser or heat-pump installations
- Equipment replacements
- Mini-split installations
- Multifamily new construction
- VRF or VRV projects
- Refrigerant piping repairs
- Replacement of deteriorated insulation
- Preventive maintenance on exposed line sets
If the existing insulation is already badly cracked or missing, the damaged insulation should be repaired or replaced before installing the protective covering.
E-Flex Guard protects the insulation underneath it; it does not replace insulation that has already failed.
Is Line-Set Protection Worth It?
For an outdoor refrigerant line that will remain exposed for years, protective covering can be a relatively simple way to help preserve the insulation underneath it.
The potential benefits include:
- Reduced UV exposure
- Protection from rain and weather
- Better resistance to physical damage
- Cleaner finished appearance
- Removable access for future service
- Less reliance on repeated tape or coating repairs
- Longer useful life for the insulation underneath
This can be particularly valuable on multifamily and commercial projects where the same installation detail may be repeated across dozens or hundreds of HVAC systems.
Shop AIREX E-Flex Guard
Solid Source HVAC carries AIREX E-Flex Guard in common 6-foot lengths for residential, multifamily, and light-commercial HVAC applications.
Available options include:
72E E-Flex Guard
For common smaller insulated refrigerant-line configurations.
72C E-Flex Guard
For larger insulation thicknesses and line-set assemblies.
72X E-Flex Guard
For larger insulated line sets requiring additional jacket width.
For larger contractor and project installations, 75-foot continuous rolls are available by special order.
Contact Solid Source HVAC for current availability, lead time, and contractor quantity pricing.
Protect the Insulation Before It Fails
Outdoor HVAC line-set insulation is easy to overlook because deterioration happens gradually.
But once sunlight, weather, and physical exposure begin breaking down the insulation, repairs become more difficult and the refrigerant piping may eventually be left exposed.
Providing durable protection when the system is installed can help preserve the insulation, improve the finished appearance, and reduce future repair work.
For a broader overview of line-set protection methods, sizing, and E-Flex Guard options, read our HVAC Line-Set Insulation Protection Guide.
