How High Should an Outdoor AC Unit Be Above the Ground?
There is not one universal height that applies to every outdoor air-conditioning or heat-pump unit.
The correct elevation depends on the equipment manufacturer's installation requirements, the supporting surface, drainage, climate, snow and ice conditions, flood exposure, and the specific installation location.
Outdoor units generally need a stable, level support that keeps the equipment properly positioned while allowing drainage and airflow around the base. Some manufacturers specifically recommend additional elevation in locations where snow, ice, or standing water could affect the outdoor coil or unit operation.
That is where condenser risers can be useful. Risers elevate the outdoor equipment above the supporting pad or mounting surface, providing additional clearance without requiring a taller concrete base.
In this guide, we will explain when equipment elevation matters, the difference between 3-inch and 6-inch risers, when additional height may be beneficial, and what contractors should consider before selecting a condenser support.
Why Elevate an Outdoor AC Condenser?
Elevating an outdoor condenser or heat pump can provide several practical benefits depending on the installation.
Drainage and water clearance. Additional space beneath the unit can help keep the equipment farther away from standing water, splash back, and drainage around the pad.
Snow and ice clearance. Heat pumps in colder climates may need additional elevation so snow accumulation and defrost water do not block the outdoor coil or interfere with drainage. Manufacturer requirements should determine the necessary height for the specific unit and climate.
Cleaner installations. Raising equipment above the immediate pad surface can help separate the base of the unit from dirt, mulch, leaves, grass clippings, and other debris.
Service access. Additional elevation may make certain piping, drainage, or equipment-base components easier to inspect and service.
Equipment protection. Keeping the unit farther from persistent moisture, landscaping activity, and debris can help create a more durable outdoor installation.
The goal is not simply to raise the condenser as high as possible. The support needs to remain stable, level, properly positioned, and compatible with the equipment manufacturer's instructions.
AC Condenser Pad vs. Risers: What Is the Difference?
An equipment pad and condenser risers serve related but different purposes.
The equipment pad provides the primary stable surface underneath the outdoor unit. Pads are commonly made from concrete, composite material, or other approved products and help keep the condenser level and separated from the surrounding soil.
Condenser risers are installed between the equipment and the supporting pad or surface to add additional elevation.
A simple way to think about it is:
Equipment pad → provides the foundation
Condenser risers → add clearance above the foundation

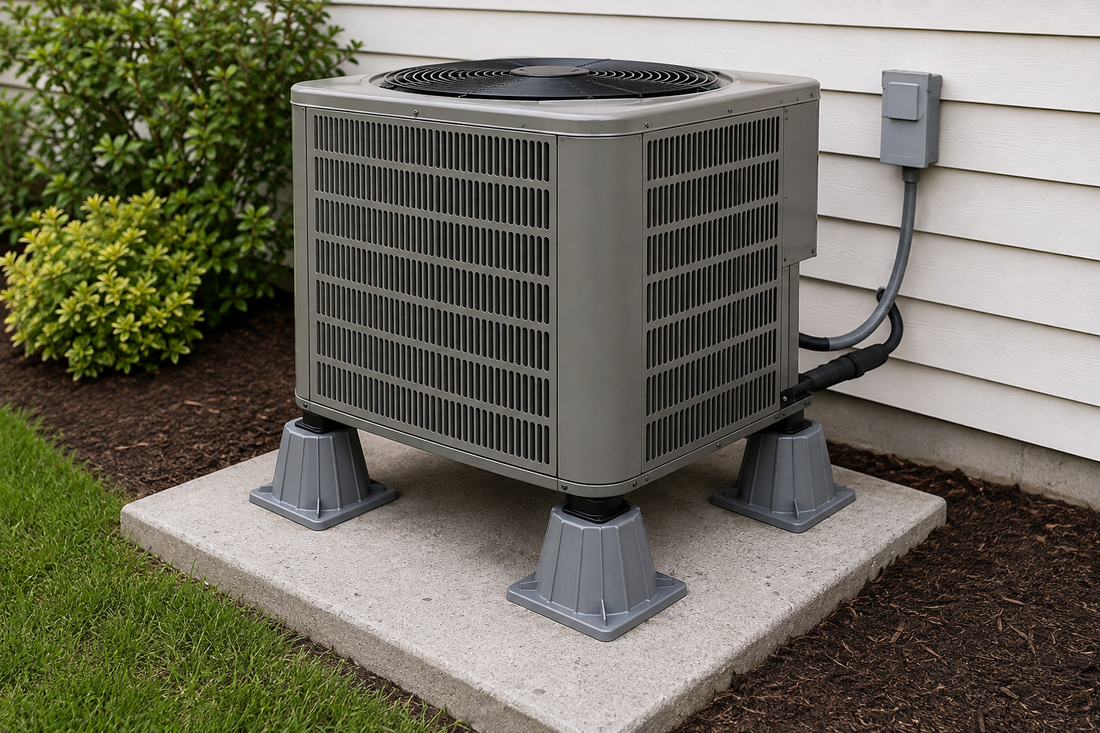

In many installations, the two are used together. The condenser sits on risers, and the risers sit on the equipment pad.
This can provide additional clearance without requiring the contractor to install an unusually thick or elevated concrete pad.
3-Inch vs. 6-Inch Condenser Risers: Which Should You Use?
The appropriate riser height depends on the equipment, installation environment, and amount of clearance required.
3-Inch Condenser Risers
A 3-inch riser can be useful when the main goal is to provide moderate separation between the outdoor unit and the supporting pad.
Common applications may include:
- Residential air-conditioning condensers
- Multifamily HVAC installations
- Areas where modest drainage clearance is desired
- Installations where additional separation from dirt, mulch, or debris is beneficial
- Projects where equipment elevation is required but significant snow clearance is not a concern
A 3-inch riser can provide a clean, compact installation while keeping the equipment relatively close to the supporting surface.
6-Inch Condenser Risers
A 6-inch riser provides greater elevation and may be appropriate where additional clearance is needed.
Potential applications include:
- Heat-pump installations
- Areas with greater snow or ice concerns
- Locations where additional drainage clearance is desirable
- Installations subject to heavier landscaping or debris
- Project specifications requiring greater equipment elevation
The taller riser should not automatically be considered “better.” The correct choice should match the equipment manufacturer's instructions and the conditions at the installation site.
Do Heat Pumps Need More Ground Clearance?
Heat pumps can require additional attention because the outdoor coil operates during heating mode and periodically enters a defrost cycle.
During defrost, water can drain from the outdoor unit. In freezing conditions, inadequate clearance can contribute to ice accumulation beneath or around the equipment.
Snow accumulation can also interfere with airflow through the outdoor coil if the equipment is installed too close to the surrounding surface.
For these reasons, heat-pump installations in colder climates may require greater elevation than a standard cooling-only condenser installation.
The required height should be determined by:
- Equipment manufacturer instructions
- Expected snowfall
- Defrost-water drainage
- Local climate
- Local code requirements
- Project specifications
Condenser risers can provide a straightforward way to achieve additional clearance without modifying the equipment itself.
What About Flooding and Standing Water?
Outdoor HVAC equipment should not be positioned where routine drainage or standing water can affect the unit.
Risers can provide additional separation from normal surface water and splash back, but they should not be treated as a substitute for proper flood-elevation design.
Properties located within flood-prone areas may have specific requirements for elevating mechanical equipment above established flood elevations.
Those installations should follow the applicable building code, floodplain requirements, project documents, and equipment manufacturer's instructions.
Where Should Condenser Risers Be Installed?
Risers should be placed on a stable, level supporting surface capable of supporting the outdoor equipment.
The equipment should remain level after installation, and the risers should be positioned so the unit is properly supported without creating instability.
Important installation considerations include:
- Equipment weight
- Base-pan configuration
- Manufacturer-approved support locations
- Pad condition
- Riser placement
- Equipment leveling
- Refrigerant piping alignment
- Electrical and service clearances
- Wind or anchoring requirements where applicable
Risers should not be positioned randomly beneath the equipment simply to achieve additional height. The support arrangement should be appropriate for the specific outdoor unit.
When Are Condenser Risers Most Useful?
Condenser risers can be useful anywhere additional separation between the outdoor HVAC equipment and its supporting surface provides a practical benefit.
Common applications include multifamily projects, where contractors may be installing dozens or hundreds of similar outdoor units and want a consistent equipment-support detail across the property.
They can also be useful for heat-pump installations, where additional clearance may help accommodate defrost-water drainage, snow accumulation, or ice conditions depending on the climate and equipment manufacturer requirements.
Other common applications include replacement installations where the existing equipment pad remains in good condition, areas surrounded by landscaping or mulch, locations subject to frequent rain or drainage concerns, and projects where plans or specifications call for the equipment to be elevated above the pad.
Risers can also simplify installation because the contractor can achieve additional equipment height without pouring a taller concrete foundation.
The important point is that the riser should solve a specific installation need rather than being added simply because more height appears better.
Are Condenser Risers Good for Multifamily HVAC Projects?
Yes. Condenser risers can be especially useful on multifamily projects because they provide a repeatable way to elevate outdoor equipment across a large number of units.
Using a consistent riser height can help contractors maintain a more uniform installation while providing separation from pads, landscaping, drainage, and debris.
This can be particularly valuable on garden-style apartment projects where outdoor condensers or heat pumps are installed at grade adjacent to individual units.
For larger projects, contractors should verify the required riser height, equipment compatibility, support arrangement, and anchoring requirements before standardizing the installation detail across the project.
Solid Source HVAC carries condenser riser options that can be supplied for individual installations as well as larger contractor and project quantities.
What Should You Look for in an AC Condenser Riser?
A condenser riser should do more than simply raise the equipment off the pad.
Look for a product that provides a stable support surface, adequate load capacity, weather-resistant construction, and dimensions appropriate for the equipment being installed.
The riser should also allow the outdoor unit to remain level and should not interfere with drainage, refrigerant piping, electrical connections, or required service access.
For larger projects, consistency matters as well. Using the same riser type and height throughout a development can help simplify installation and create a cleaner finished appearance.
Before ordering, verify the equipment manufacturer's support requirements and confirm that the riser is suitable for the weight and base configuration of the outdoor unit.
Cambridge 3-Inch vs. 6-Inch Condenser Risers
Solid Source HVAC carries Cambridge condenser risers in both 3-inch and 6-inch heights.
The 3-inch model is well suited for installations where moderate elevation above the pad is desired without significantly raising the outdoor unit.
The 6-inch model provides additional clearance for applications where greater separation is needed due to drainage, snow, ice, landscaping, project specifications, or other site conditions.
Both options are intended to provide a stable equipment-support solution while helping create a clean, consistent outdoor installation.
A simple starting point is:
3-inch riser → moderate equipment elevation
6-inch riser → greater clearance when site conditions or project requirements call for it
The final selection should always be based on the outdoor unit manufacturer's requirements and actual installation conditions.
How Many Condenser Risers Do I Need?
The number and placement of risers depends on the outdoor equipment's base design and the support arrangement required by the manufacturer. For a typical install, we recommend a riser on each corner of the unit, for 4 total per unit.
The goal is to support the equipment evenly while keeping the unit stable and level.
Do not assume that every condenser uses the same number of risers or that they can be positioned anywhere beneath the base pan. Check the equipment installation instructions and confirm the appropriate support locations before installation.
For repetitive multifamily or project installations, this should ideally be determined during the planning stage so crews can use a consistent mounting detail throughout the project.
Shop AC Condenser Risers
Solid Source HVAC carries 3-inch and 6-inch Cambridge condenser risers for residential, multifamily, and light-commercial HVAC installations.
Choose the riser height based on the required equipment clearance, site conditions, and outdoor-unit manufacturer requirements.
For larger multifamily, contractor, or project quantities, contact Solid Source HVAC for current availability and quantity pricing.
How Do You Choose Between 3-Inch and 6-Inch Risers?
Start with the equipment manufacturer's requirements and the conditions at the installation site.
Choose the 3-inch riser when moderate elevation is sufficient and the main goal is additional clearance from the pad, drainage, dirt, or landscaping.
Choose the 6-inch riser when the installation requires more separation due to snow, ice, drainage, landscaping, project specifications, or other site-specific conditions.
Neither height should be selected solely because it is taller or less expensive. The goal is to provide the amount of elevation the installation actually requires while keeping the outdoor equipment stable, level, and properly supported.
Raising the Outdoor Unit Is Only Part of the Installation
Condenser risers can provide useful additional clearance, but they are only one part of a properly installed outdoor HVAC system.
The supporting pad must still be stable and level, the equipment must be properly supported, service clearances must be maintained, refrigerant and electrical connections must be accommodated, and any required anchoring must be completed correctly.
When those factors are addressed together, condenser risers can provide a simple and effective way to create a cleaner, more durable outdoor equipment installation.
